Beacon Receiver

Beacon receiver









Introduction:

Beacon receiver series products are designed to demodulate the satellite beacon signals down converted to L-band from C, Ku and Ka bands. AGC voltage and lock signal can be demodulated from the beacon signals and offered to ACU, controlling the antenna to point at the satellite accurately. Satellite communications is the typical application field for the series products, including satellite tracking system for vehicles and vessels, flyaway antennas, satellite communications ground terminals, stationary satcom, emergency communications vehicles and mobile TVRO systems.




Features:

▲Beacon tracking

▲650MHz bandwidth

▲Wide bandwidth and wide dynamic range

▲Amplitude tracking ( maximum value)

▲0.05MHz step frequency

▲High voltage linearity of AGC

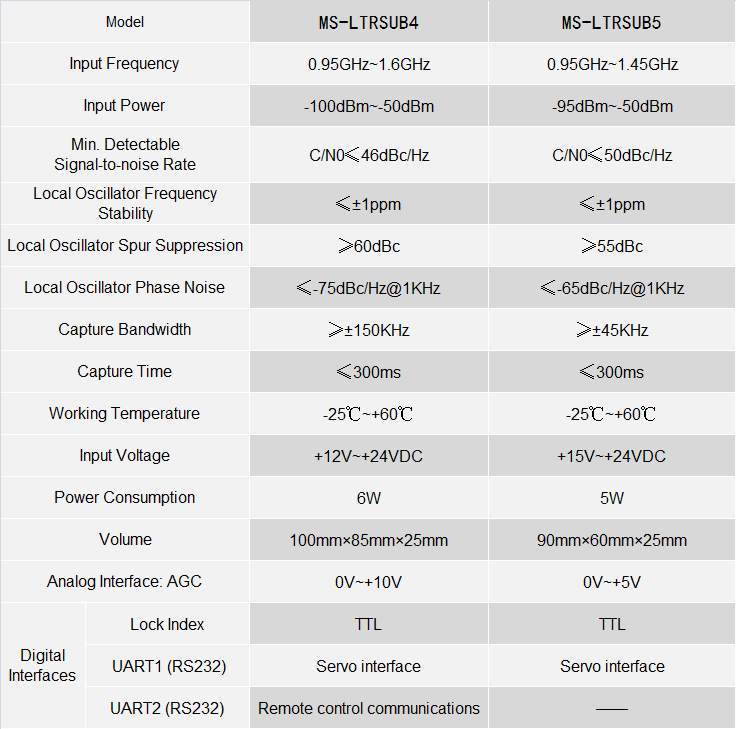

Specifications：
