0.6m Ku Band Maritime VSAT S060-14F

S060-14

0.6m Ku Band Maritime VSAT










Introduction:

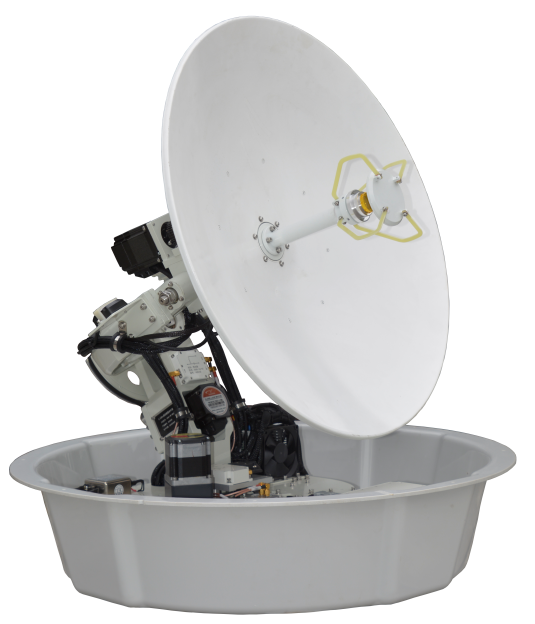

S060-14 Ku band maritime VSAT, combining high-accuracy technology of strapdown inertial navigation with beacon tracking, built-in GPS module, can keep tracking satellite accurately for vessels on the move.There is 3-axis system compatible pedestal designed for users. And it’s more convenient to use with the maintenance-free dehumidifying technology.







Features:

▲Modular design, high integration

▲High tracking-accuracy, fast response speed

▲System dehumidifying maintenance-free

▲3-axis system compatible design









Applications:




This system can be used at the ocean or inland waterway. Compared with common linear satellite communication, this system is able to link satellite communication, equip with related decoder to realize many operations, such as mutual transmission for video and voice, sharing with data resource. The typical features include unlimited communication distance, flexible deployment and strong environment adaptability.

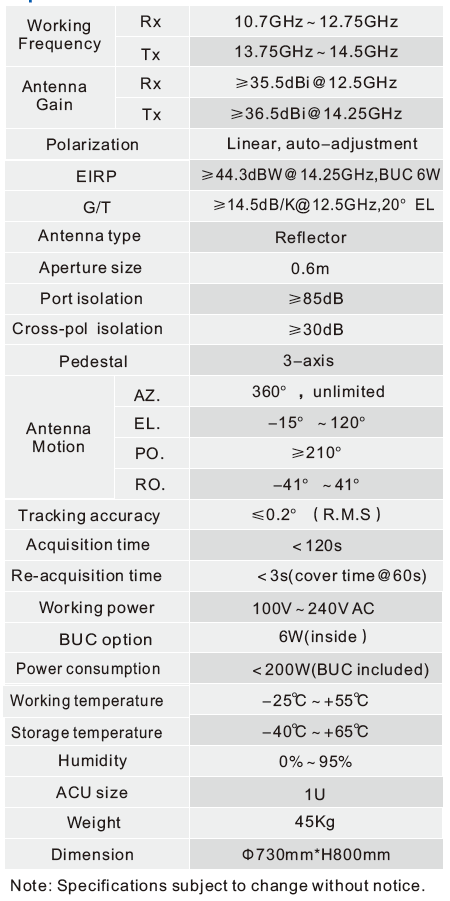

                               Specification

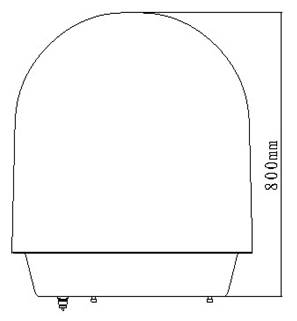

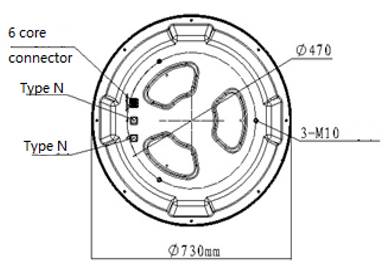

                  Product Dimension

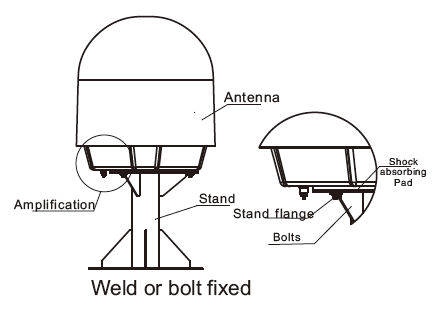

                            Mount Instruction
