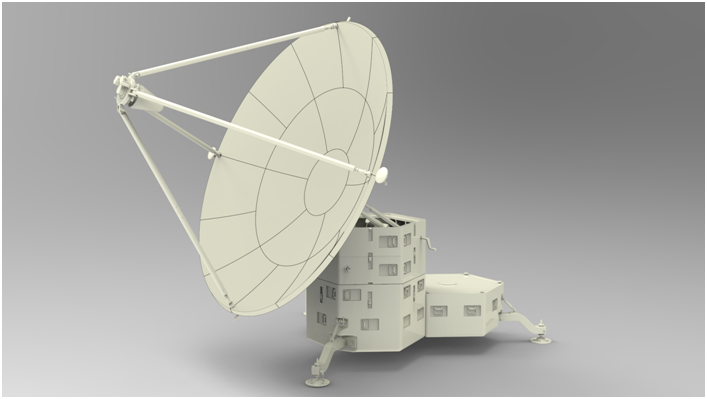

3.0M Box Type Automatic Moveable Antenna









v Product Features

This antenna is designed for various applications, such as emergency communication, remote sensing and control, news gathering. It adopts modular design that is convenient for combatants to carry on maneuver and can quickly set up and open business under complicated working conditions. The antenna can track synchronous orbit satellites, polar orbit satellites, UAVs and pre-set target under a variety of harsh conditions with core technology of A-E seat frame of Pan-tilt, electric polarization, absolute encode for end transmission and precision servo control. The series include frequency L, S, C, X, Ku, Ka and 1-40GHz, and can be used for data transmission or electromagnetic signal reconnaissance.

v Product Features

1. Stable performance, high strength and light weight with large number of carbon fiber composite materials;

2. The antenna has feed forward and ring focus for options, and has the advantages of low side-lobe, high gain and high efficiency.

3. The antenna system is equipped with positioning, orientation, location memory unit, drive unit, automatic protection unit, high-performance satellite beacon receiving unit and other equipment.

4. Support input location information for quickly pointing and tracking.

5. Both manual and automatic control are available;

v Performance




Description	3.0M Ka-Band	3.0M Ku-Band	3.0M X-Band	3.0M C-Band
Model	XYB-Z300A1-01	XYB-Z300A1-02	XYB-Z300A1-03	XYB-Z300A1-04
Frequency （GHz）	Rx:17.7～21.2	Rx:10.95～12.75	Rx:7.25～7.75	Rx:3.4～4.2
	Tx:29～31	Tx:13.75～14.50	Tx:7.9～8.4	Tx:5.85～6.725
Polarization	Circular	Linear	Circular	Linear
Gain （dB）	53+20lg(f/20)	49+20lg(f/11.85)	45+20lg(f/7.5)	39.1+20lg(f/3.8)
	56.8+20lg(f/30)	50+20lg(f/14.1)	45.5+20lg(f/8.15)	43.5+20lg(f/6.3)
Motion Range	AZ:±180°	AZ:±180°	AZ:±180°	AZ:±180°
	EL：0°～90°	EL：0°～90°	EL：0°～90°	EL：0°～90°
	/	Polarization:±90°	/	Polarization:±90°
Motion Speed	0.1°/s～3°/s	0.1°/s～3°/s	0.1°/s～3°/s	0.1°/s～3°/s
	0.1°/s～1°/s	0.1°/s～1°/s	0.1°/s～1°/s	0.1°/s～1°/s
	/	0.1°/s～1°/s	/	0.1°/s～1°/s
Operating Temperature	-40°C～+60 °C
Storage Temperature	-60°C～+70 °C
Protection Level	IP65
Power Supply	220 VAC±10％，50Hz±2 Hz
Power Consumption	≤ 800 W（BUC excluded）
L-band   and S-Band Feeds are available for option;




Description	Model	Frequency（GHz）	Efficiency	Index of Pan-Tilt is consistence   with above requirements.
3.0M Microwave Automatic Moveable Antenna	XYB-Z300B1	1～18、18～40	35%
